Product Overview

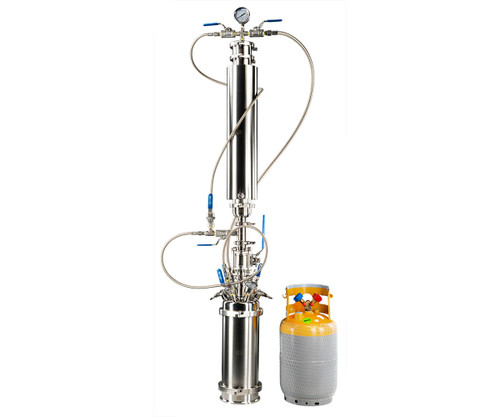

1 lb Apollo Dewaxing Closed Loop Extractor
The 1 lb Apollo Dewaxing closed loop is a great introductory unit for small scale production.nbsp;The 1 lb closed loop hydrocarbon extraction system performs botanical extraction within a sealed, vacuumed system. Utilizing a top-fill input, solvent washes through the material column, collecting oils as it passes over the material. Oil bearing solvent is collected in the collection base under the material column. Once collected, solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent.
Features
nbsp;Up to 1 lb material capacity
nbsp;Solvent reclamation
nbsp;Sleeved column for removal of plant waxes
nbsp;Splatter platter collection base for easy extract removal
nbsp;Sight glasses on collection base
nbsp;100 micron filtration built into gasket
nbsp;Benefits
nbsp;Save money with solvent reclamation
nbsp;Fast extraction and recovery speed
nbsp;Dewaxing column yields higher quality extract
Includes
nbsp;6 x 12 collection base
nbsp;30 LP tank
nbsp;3 x 34 material column
nbsp;Stainless steel braided PTFE hoses
nbsp;Buna-N tri-clamp gaskets
nbsp;Single pin clamps
ADDITIONAL EQUIPMENT REQUIRED FOR OPERATION OF UNIT.nbsp;THIS UNIT REQUIRES A VACUUM PUMP AND DRY ICE TO FUNCTION.
It is also recommended to have a refrigerant scale and nitrogen tank with regulator to operate this unit.
A VE115 3cfm BVVVE115 vacuum pump is recommended for this system.
Technical Specs
Dimensionsnbsp;10 Diameter x 63 Height
Weight 46 lbs
Max Allowable Working Pressure 150 PSI
Operating Temperature Range -40F 200F
304 Stainless Steel Construction
High Polish Interior
Solvent Capacity 6 lbs
