Product Overview

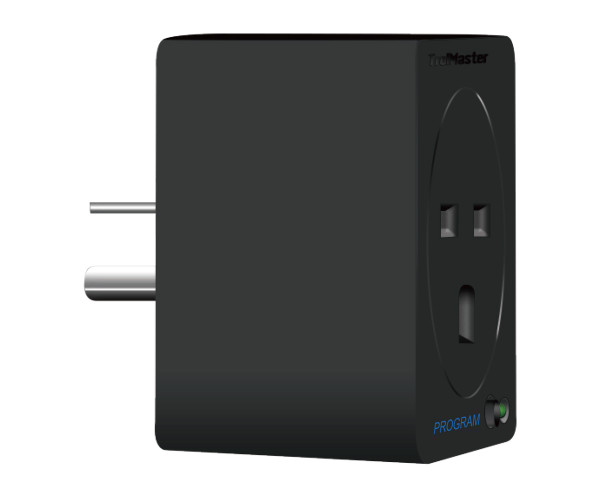

TrolMasterDSP-2 240V Hydro-X Program Device Station
The TrolMaster DSP-2 program device module timer module works as a multi-function timer. The DSP-2 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x. Any device that is 10-amps at 240 volts or less can be controlled by the DSP-2.
The DSP-2 works as a multi-function irrigation timer on the Aqua-X. The DSP-2 can be set to activate at a specific times of day or night and configured to function as a recycling timer with or without a maximum number of cycles setting. The DSP-2 can also be used as a master pump controller on the Aqua-x. A master pump would be plugged into the DSP-2. When connected to the Aqua-x 24vac module, the DSP-2 will automatically turn on the pump when any of the 24vac irrigation zones are activated.
Features amp; Benefitsnbsp;
Package Content
Specification
* Ship By Date is estimated and handling times may vary.
The TrolMaster DSP-2 program device module timer module works as a multi-function timer. The DSP-2 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x. Any device that is 10-amps at 240 volts or less can be controlled by the DSP-2.
The DSP-2 works as a multi-function irrigation timer on the Aqua-X. The DSP-2 can be set to activate at a specific times of day or night and configured to function as a recycling timer with or without a maximum number of cycles setting. The DSP-2 can also be used as a master pump controller on the Aqua-x. A master pump would be plugged into the DSP-2. When connected to the Aqua-x 24vac module, the DSP-2 will automatically turn on the pump when any of the 24vac irrigation zones are activated.
Features amp; Benefitsnbsp;
- LED Indicator
- Attaching Plug
- RJ12 Cable Socket
- Address Assignment
- Plug amp; Play
Package Content
- 1 x Device Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specification
- Input Voltage 100240 VAC, 50/60Hz
- Output Current 10A
- Output Voltage 100240 VAC, 50/60Hz
- Working Temperature 32-122F
- Working Humidity 90%
- Package Dimensions 85mmL x 80mmW x 90mmH
- G.W. per pack nbsp;0.34kgs
* Ship By Date is estimated and handling times may vary.
