Product Overview

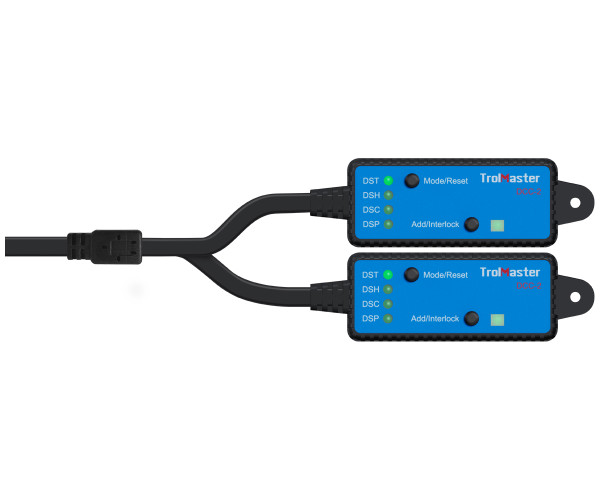

DCC-2 Dual System Control Adapter
The TrolMaster DCC-2 can connect up to two controllers, providing a simple solution for controlling a single device with multiple conditions. For example, if an exhaust fan is assigned for climate control by the Hydro-X system, the DCC-2 enables the same exhaust fan to also be addressed to Carbon-X for emergency CO2 exhaust purposes.
The DCC-2 is designed to be used in combination with one of TrolMasters plug-in style modules. DSC-1, DSH-1/2, DST-1/2 , DSP-1, DSD-1, DSV-1. Once connected to the plug-in module using the RJ12 cable built into the DCC-2, the DCC-2 will act in concert with that plug-in module to both 2 controllers, whatever device is connected to the plug-in module.
Features amp; Benefits
Package Content
Specifications
* Ship By Date is estimated and handling times may vary.
The TrolMaster DCC-2 can connect up to two controllers, providing a simple solution for controlling a single device with multiple conditions. For example, if an exhaust fan is assigned for climate control by the Hydro-X system, the DCC-2 enables the same exhaust fan to also be addressed to Carbon-X for emergency CO2 exhaust purposes.
The DCC-2 is designed to be used in combination with one of TrolMasters plug-in style modules. DSC-1, DSH-1/2, DST-1/2 , DSP-1, DSD-1, DSV-1. Once connected to the plug-in module using the RJ12 cable built into the DCC-2, the DCC-2 will act in concert with that plug-in module to both 2 controllers, whatever device is connected to the plug-in module.
Features amp; Benefits
- LED indicator
- Plug amp; Play
Package Content
- 1xnbsp; Dual System Control Adapter
Specifications
- Input Voltage 12VAC
- Maximum Currentnbsp; 0.2A
- Ambient Temperature 32-122F 0-50C
- Relative Humidity 90%
