Product Overview

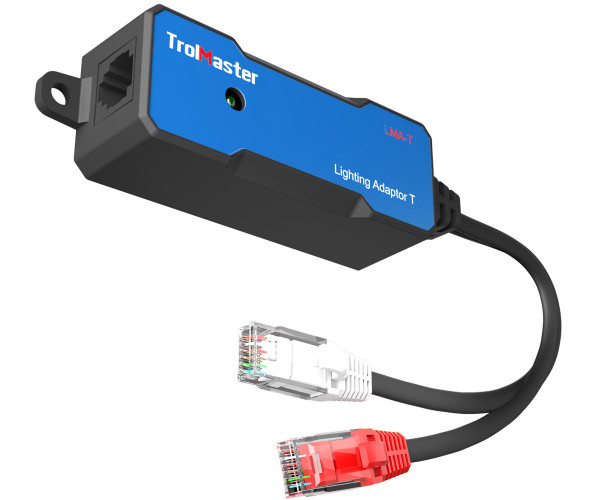

TrolMaster LMA-T Lighting Adapter-T for Hydro-X System
TrolMasters Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters LMA units that allow the Hydro-x to control lights using their low-volt control option.nbsp;
The LMA-T works specifically with the ThinkGrow LED systems to provide two channel control, which allows separate control for full-spectrum and deep red output levels on the ThinkGrow LEDs.
The LMA-T simply connects to the lighting control ports Line 1 and Line 2 on the HCS-1. Once connected, the user can then set individual ON and OFF times and the dimming settings for the full spectrum LEDs and also for the deep red LEDs.
The LMA-T then is connected to the RJ-type lighting control cables where each of the LEDs are connected back to the controller in a daisy-chain configuration using plug-and-play connections.
One adaptor could run up to 256 LEDs.nbsp;
Convert RJ12 to Water Proof Connector Cable included.
Features amp; Benefitsnbsp;
Package Content
Specification
* Ship By Date is estimated and handling times may vary.
TrolMasters Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters LMA units that allow the Hydro-x to control lights using their low-volt control option.nbsp;
The LMA-T works specifically with the ThinkGrow LED systems to provide two channel control, which allows separate control for full-spectrum and deep red output levels on the ThinkGrow LEDs.
The LMA-T simply connects to the lighting control ports Line 1 and Line 2 on the HCS-1. Once connected, the user can then set individual ON and OFF times and the dimming settings for the full spectrum LEDs and also for the deep red LEDs.
The LMA-T then is connected to the RJ-type lighting control cables where each of the LEDs are connected back to the controller in a daisy-chain configuration using plug-and-play connections.
One adaptor could run up to 256 LEDs.nbsp;
Convert RJ12 to Water Proof Connector Cable included.
Features amp; Benefitsnbsp;
- LED Indicator
- Plug amp; Play
Package Content
- 1x LMA-T
- 1x RJ12 to customized waterproof connectornbsp;
- 1x ECS-9 cable
Specification
- Output Voltage 011.5V
- Maximum Current 0.2A
- Working Temperature 32-122F
- Working Humidity 90%
- Packaging Dimensions 156mmL x 83mmW x 30mmH
